Respiratory DevicesGerman

AEONMED BF30ST BiPAP

SKU: AEONMED-BF30STBiPAP

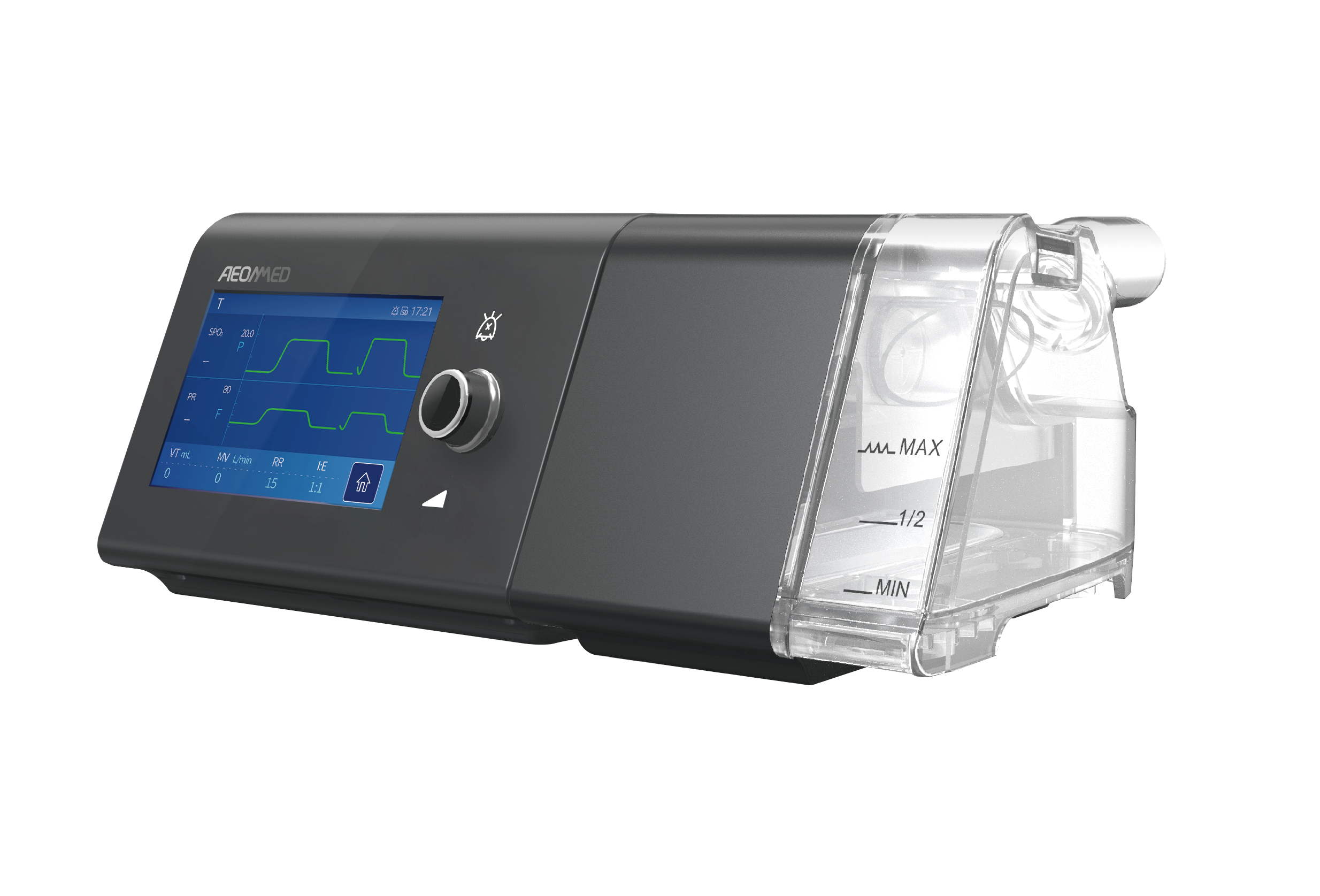

AEONMED NeoBip BF30ST Non-Invasive Ventilator The Aeonmed BF30ST from the NeoBip series is a high-performance non-invasive ventilator designed to deliver accurate, intelligent control for every comfortable breath. Engineered with over 20 years of technology accumulation, this device features a unique pressure control algorithm that rapidly adapts to a patient's breathing efforts to ensure perfect synchronization. It is intended specifically for the treatment of adult Obstructive Sleep Apnea (OSA) or for patients with pulmonary insufficiency requiring respiratory support. Advanced Therapy Modes & VGPS Technology The BF30ST supports a comprehensive suite of ventilation modes, including CPAP, S, T, S/T, and VGPS. VGPS (Volume Guarantee Pressure Support): This mode guarantees a pre-set tidal volume target. If the system detects that a patient's inspiratory volume is falling short, it automatically raises the inspiratory pressure to achieve the target volume. This ensures the patient's tidal volume is maintained, even if their airway resistance or compliance changes during the night. Additionally, a low tidal volume alarm provides an extra layer of ventilation safety.

Key Features Ultra-Fast Synchronization

Features a 6-level adjustable pressure rise slope. The device responds to a patient's inspiratory trigger in as fast as 150ms, ensuring smooth breaths and easing the workload on respiratory muscles.

High-Resolution Touchscreen

Built with a vibrant 4.3-inch colorful touchscreen display. It utilizes an exquisite UI design that displays multiple monitored parameters simultaneously, paired with a highly flexible navigator knob for effortless operation.

Whisper-Quiet Operation

Operates at a remarkably low noise level of less than 30dB, ensuring uninterrupted sleep for both the patient and their partner.

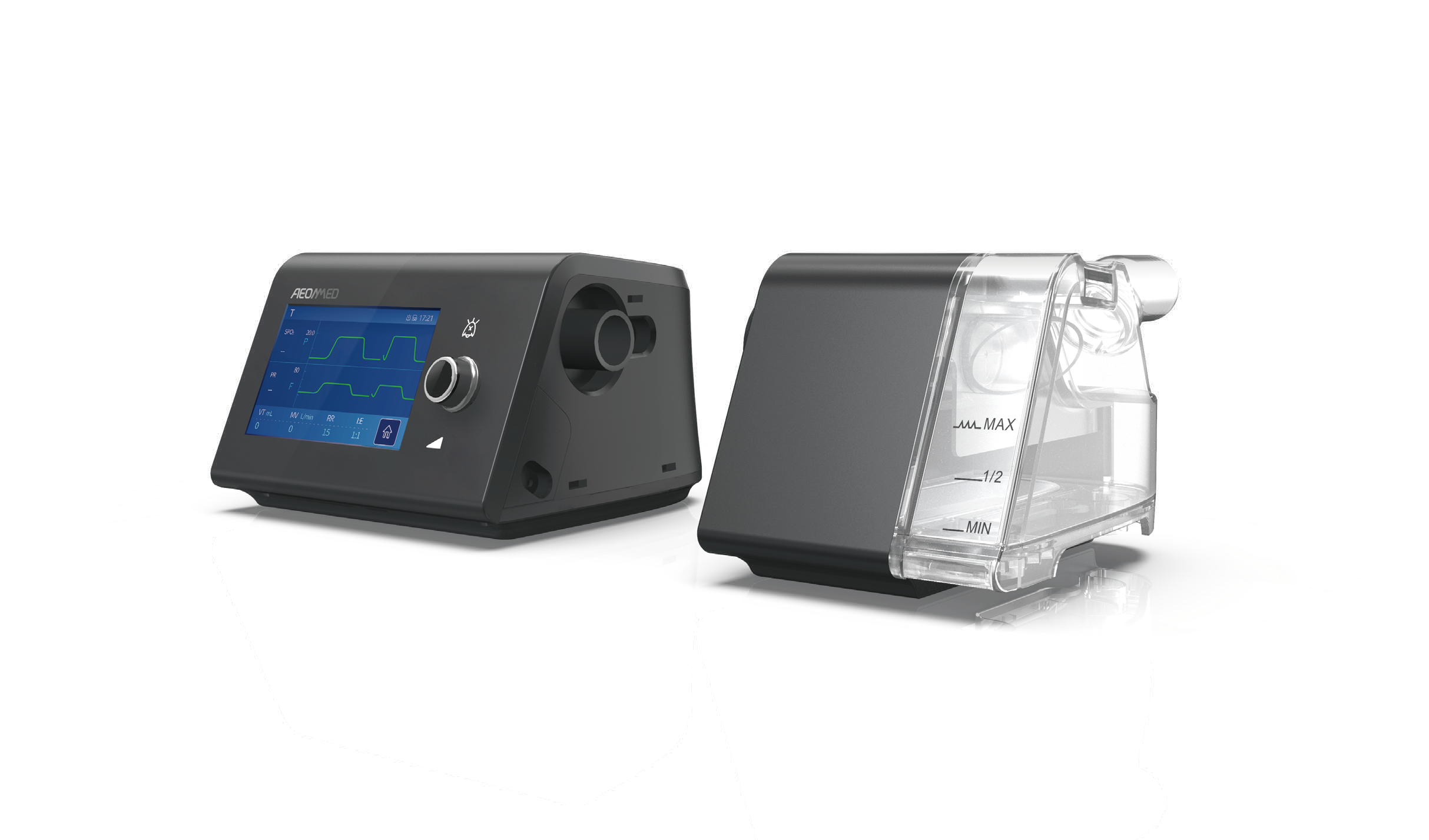

Travel-Friendly & Detachable Design

The main unit weighs only 0.82kg, scaling to a total of 1.26kg when the humidifier is attached. The detachable design between the main unit and humidifier makes it highly convenient for both home use and traveling.

AS-Dry Technology

Includes automated AS-Dry technology to help reduce internal moisture, keeping the equipment hygienic.

Technical Specifications

Feature	Specification
IPAP Range:	6 – 30 hPa.
EPAP Range:	4 – 25 hPa.
Target Tidal Volume:	200ml – 1500ml.
Respiratory Rate:	10BPM / 5-40BPM.
Ramp Time:	0 – 60 minutes
Monitoring Parameters:	Tracks Pressure, Tidal volume, Minute ventilation, Respiratory rate, and Leakage.
Data Storage:	Equipped with an SD card for long-term therapy data tracking.
