Infant Radiant Warmer Ecosy630

SKU: Ecosy630Warmer

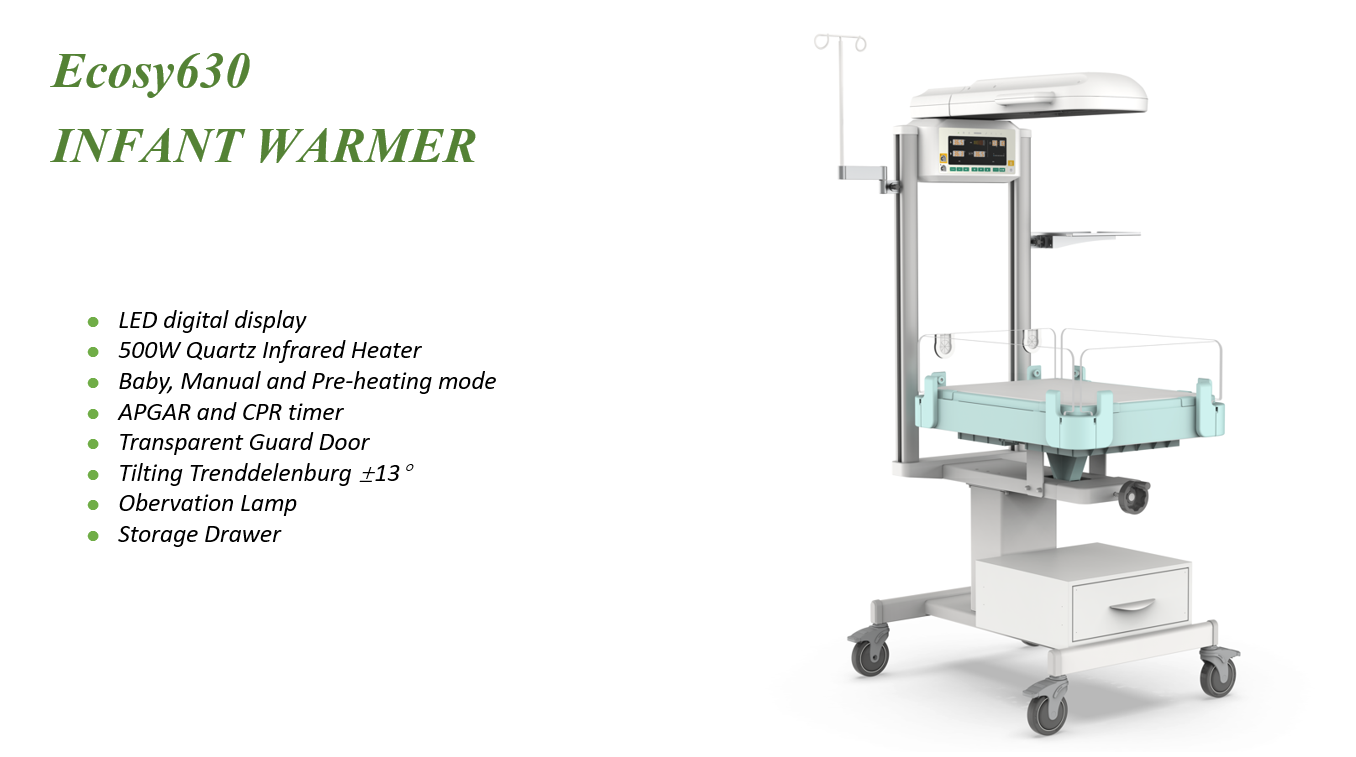

Ecosy 630 Infant Radiant Warmer The Ecosy 630 is a sophisticated infant radiant warmer designed to provide a stable and controlled thermal environment for newborns. Combining precise temperature management with a user-friendly interface, it ensures clinical efficiency while maintaining the highest standards of safety for neonatal care.

Key Features Precision Thermal Control

Equipped with a far-infrared quartz heating tube, the Ecosy630 offers three operating modes: Baby (Servo), Manual, and Pre-heating, allowing for flexible temperature management tailored to the infant’s needs.

Flexible Heating Module

The heating head is highly adjustable, featuring a ±120° horizontal rotation and a ±30° vertical tilt. This allows medical staff to move the heater out of the way for X-rays or procedures without losing the thermal environment.

Advanced Safety Alarms

Includes comprehensive audible and visual alarms for temperature deviations, sensor failure, and power interruptions. The Hand-Free Alarm Silence sensor allows clinicians to mute alarms with a simple wave, maintaining a sterile environment.

Integrated Clinical Timers

Features built-in APGAR and CPR timers with audible signals at 1, 5, and 10 minutes to assist medical teams during critical resuscitation moments.

Ergonomic Design

The bed features a tilting mechanism (±13°) and transparent guard doors on four sides with dampers for silent operation, minimizing noise disturbance for the infant.

Technical Specifications

Feature	Specification
Display:	High-visibility LED digital display for clear monitoring of set and actual skin temperatures.
Heating Element:	550W Far-infrared ceramic/quartz tube for efficient heat distribution.
Temperature Range:	Skin temperature setting range: 34.0°C – 38.0°C.
Examination Lamp:	Integrated LED observation light with adjustable intensity (0–1200 lux).
Optional Configurations:	Can be equipped with a storage drawer, X-ray cassette tray, integrated weight scale, and oxygen/suction modules for a complete nursing platform.
