Heyer OP830 Electric Operating Table
SKU: Heyer-OP830

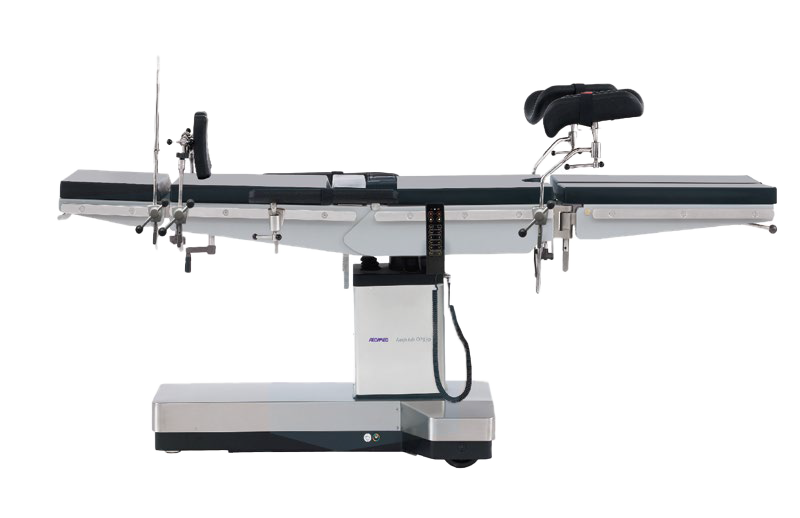

Heyer OP830 Electric Operating Table The OP830 electric operating table by Heyer is constructed from high-quality alloy steel, perfectly balancing a lightweight design with robust strength. It is engineered for stable, dynamic intraoperative positioning and maintains a dynamic load capacity of over 135 kg.

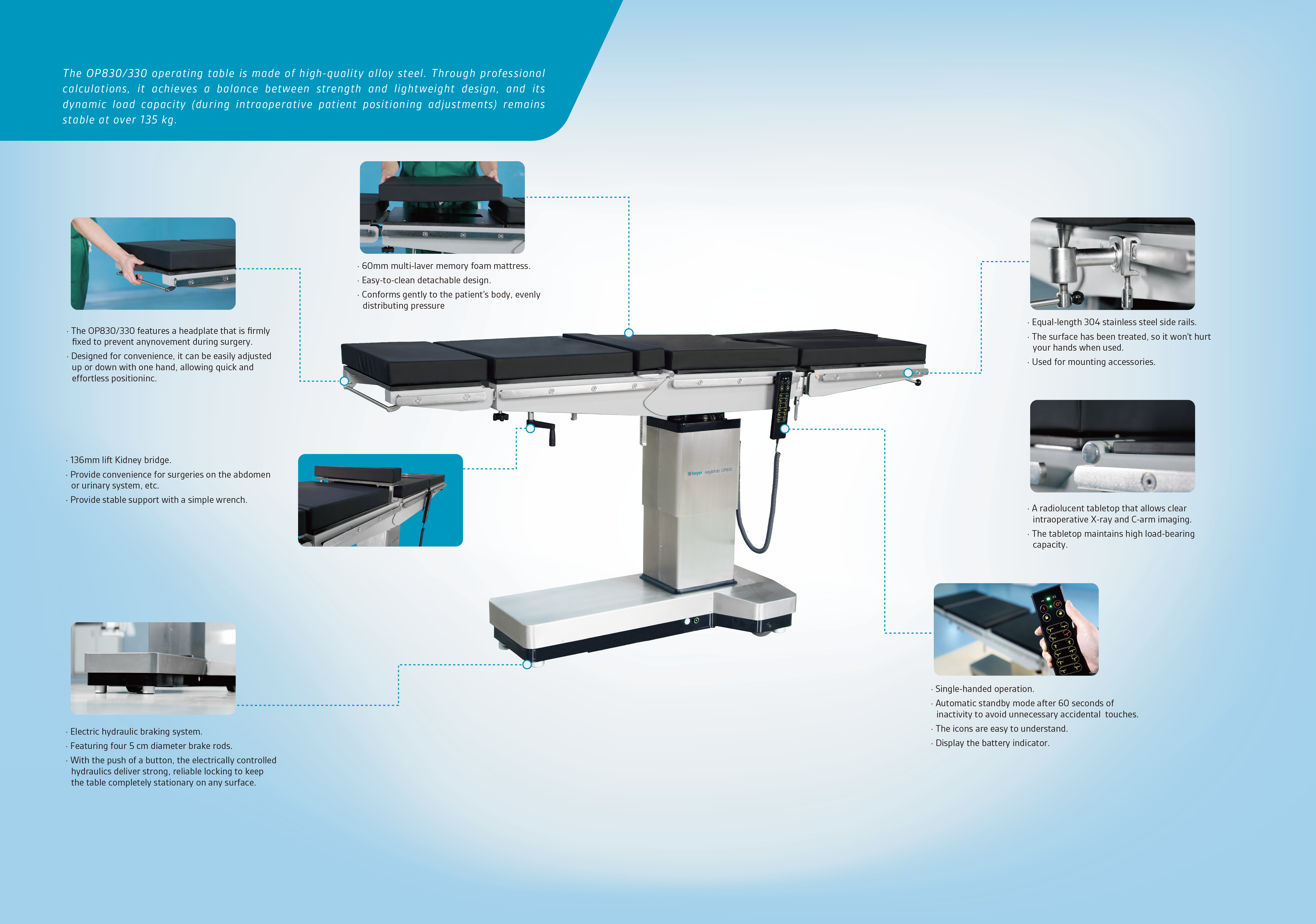

Key Features Radiolucent Tabletop
Allows for clear intraoperative X-ray and C-arm imaging while maintaining a high load-bearing capacity.
Optimal Patient Comfort
Features an easy-to-clean, 60mm detachable multi-layer memory foam mattress that conforms to the patient's body to evenly distribute pressure.
Adjustable Headplate
The detachable headplate is firmly fixed to prevent movement during surgery and can be easily adjusted up or down with just one hand.
Built-in Kidney Bridge
Provides a 136 mm lift utilizing a simple wrench for stable support, providing maximum convenience for abdominal or urinary system surgeries.
Electric Hydraulic Braking
Equipped with four 5 cm diameter brake rods that provide strong, reliable locking on any surface with the push of a button.
Intuitive Controls
Designed for single-handed operation with easy-to-understand icons and a battery indicator. An automatic standby mode activates after 60 seconds of inactivity to avoid accidental touches.
Durable Side Rails
Built with equal-length 304 stainless steel side rails featuring a treated surface for safe handling and accessory mounting.

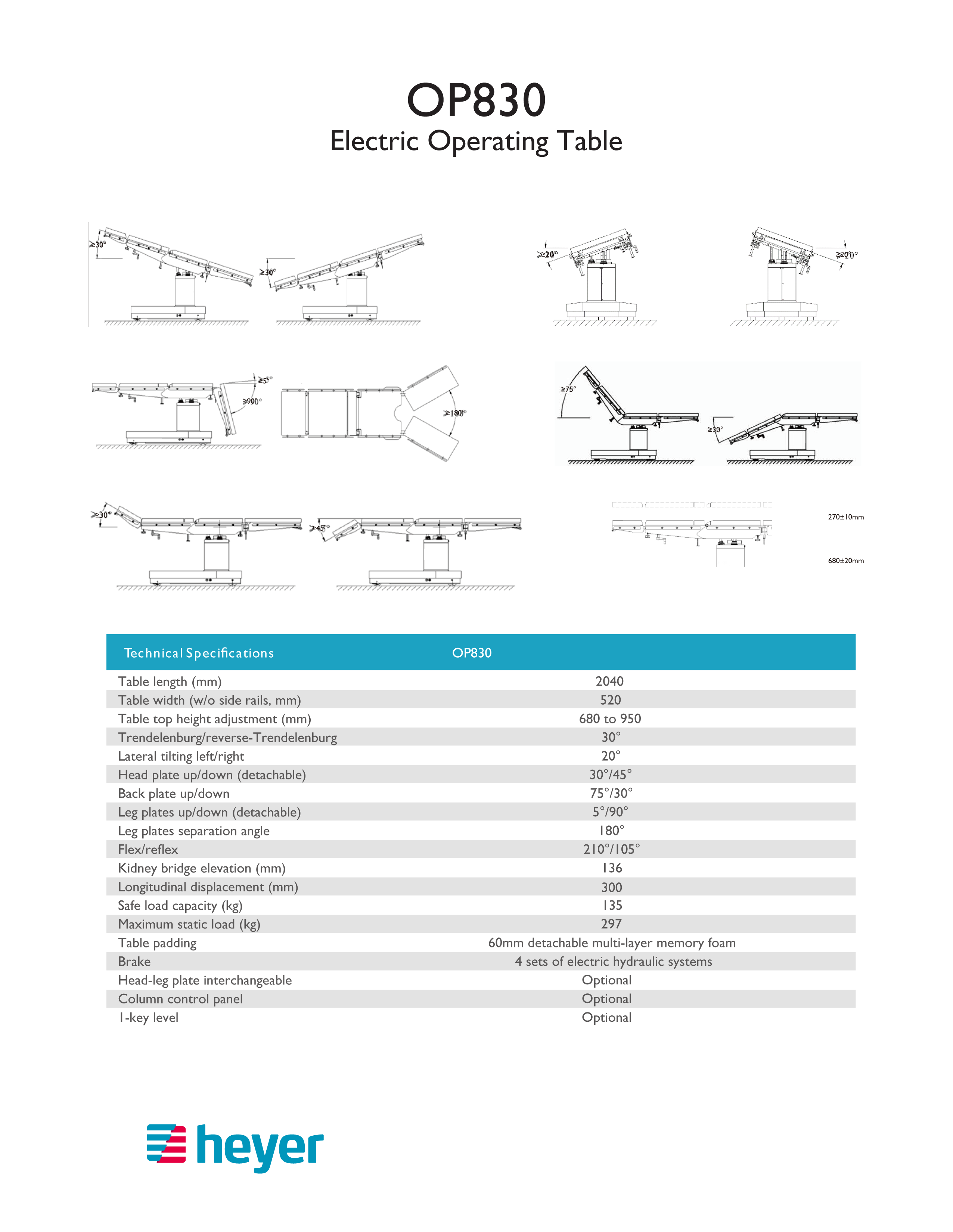

Technical Specifications
Technical Specifcations
| Feature | Specification |
|---|---|
| Table length (mm) | 2040 |
| Table width (w/o side rails, mm) | 520 |
| Table top height adjustment (mm) | 680 to 950 |
| Trendelenburg/reverse-Trendelenburg | 30° |
| Lateral tilting left/right | 20° |
| Head plate up/down (detachable) | 30°/45° |
| Back plate up/down | 75°/30° |
| Leg plates up/down (detachable) | 5°/90° |
| Leg plates separation angle | 5°/90° |
| Leg plates separation angle | 180° |
| Flex/reflex | 210°/105° |
| Kidney bridge elevation (mm) | 136 |
| Longitudinal displacement (mm) | 300 |
| Safe load capacity (kg) | 135 |
| Maximum static load (kg) | 297 |
| Table padding | 60mm detachable multi-layer memory foam |
| Brake | 4 sets of electric hydraulic systems |
| Head-leg plate interchangeable | Optional |
| Column control panel | Optional |
| 1-key level | Optional |
