JINLING-820 Anesthesia Machine With Ventilator

SKU: JINLING-820

JINLING-820 Anesthesia Machine Product Overview The JINLING-820 is a highly advanced, pneumatically driven, and electronically controlled anesthesia workstation. Designed to meet the rigorous demands of modern operating rooms and intensive care units, it combines an elegant, ergonomic frame with precise clinical engineering. From low-flow anesthesia to complex ventilation requirements, the JINLING-820 delivers reliable performance, comprehensive safety features, and intuitive controls to support superior patient care.

Key Features & Benefits Versatile Operating Modes

Fully supports closed, semi-closed, and semi-open operating modes, adapting seamlessly to diverse clinical requirements and patient profiles. Clear,

Real-Time Monitoring

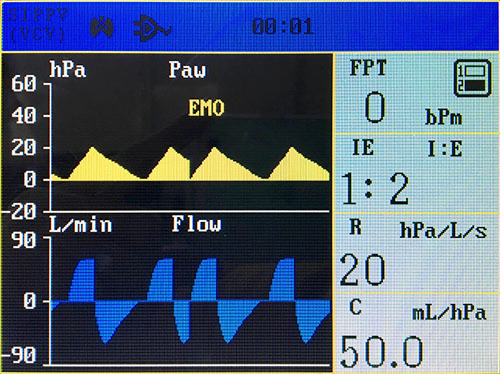

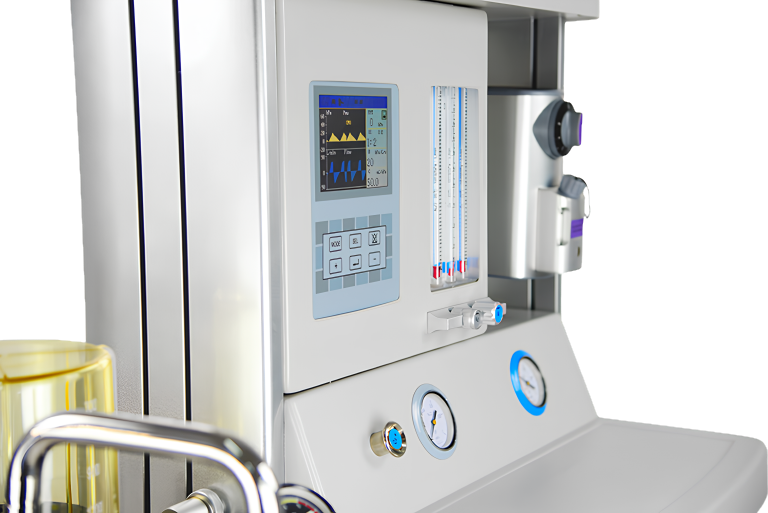

Equipped with a high-visibility 5.7-inch TFT display (with optional upgrades available), allowing clinicians to simultaneously monitor Pressure-Time and Frequency-Time waveforms for rapid patient assessment.

Integrated Respiratory Circuit

Features a standard metallic modular respiratory circuit. This advanced, highly durable design resolves common gas-sealing issues during high-temperature disinfection, ensuring sterilization is both easy and highly effective.

Comprehensive Ventilation

Offers a wide spectrum of ventilation modes, including A/C, IPPV, SIPPV, VCV, IMV, SIMV, PEEP, and Manual, providing maximum flexibility during complex surgical procedures.

Precision Gas Delivery

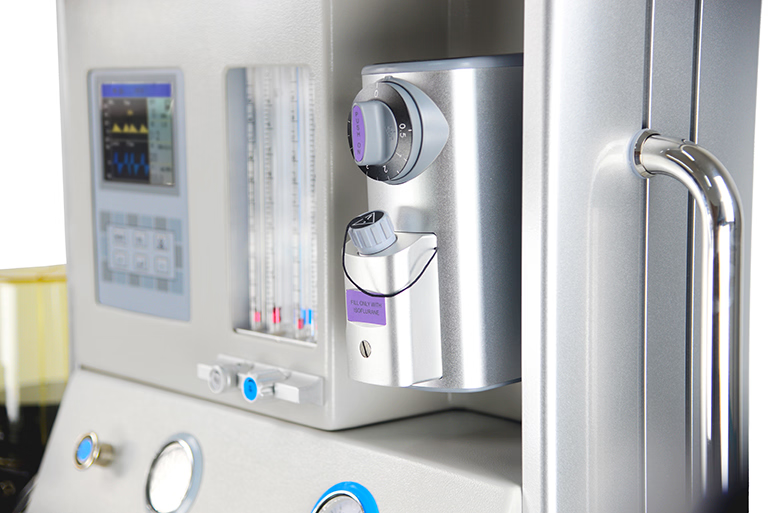

Built with a high-precision four-tube flowmeter (O2 and N2O) featuring an interlocking system to prevent hypoxic mixtures. Coupled with a highly stable Adjustable Pressure Limiting (APL) valve, the unit is optimized for low and ultra-low flow anesthesia.

Intelligent Safety Systems

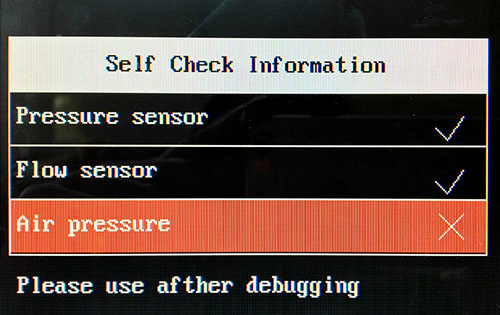

Includes an automated self-checking function upon startup, automatic self-calibrating sensors, and a robust power failure support system that automatically switches to an internal battery during AC power outages.

Technical Specifications

Feature	Specification
Tidal Volume:	Adjustable from 50 to 1500 ml (Display range: 0 ~ 2000 ml)
Ventilation Frequency:	1 ~ 100 bpm
I:E Ratio:	8:1 ~ 1:10 (Capable of inverse ratio ventilation)
PEEP:	Electronically controlled, 0 ~ 20 cmH2O
Inspiratory Trigger Pressure:	Electronically controlled, -10 ~ 20 cmH2O
Sigh Function:	Adjustable, 80 ~ 150 times
SIMV Frequency:	1 ~ 20 bpm
Flowmeter Range:	O2: 0.1 ~ 10 L/min \| N2O: 0.1 ~ 10 L/min
Vaporizer Concentration Range:	0 ~ 5% (Compatible with Enflurane, Isoflurane, Sevoflurane, and optional Halothane)

Hardware & Alarms:

Feature	Specification
Gas Requirement:	O2 and N2O (0.32–0.6 MPa)
Physical Dimensions:	930 mm x 1354 mm x 620 mm
Weight:	Approximately 86 kg
Alarm Indicators:	Comprehensive audible and visual alarms for tidal volume deviations, airway pressure, asphyxia, power failure, and oxygen supply failure, complete with a built-in alarm query function.
