JINLING-850 Advance ICU Anesthesia Machine With Ventilator

SKU: JINLING-850Advance

JINLING-850 Advance Anesthesia Machine Product Overview The JINLING-850 Anesthesia Machine is a state-of-the-art, pneumatically driven, and electronically controlled workstation engineered for precision and reliability in modern operating rooms and intensive care units. Designed to support closed, semi-closed, and semi-open operating modes, this highly versatile machine delivers comprehensive respiratory control. With its elegant, environmentally friendly frame and advanced interface, the JINLING-850 provides anesthesiologists with the confidence and flexibility needed for both routine surgeries and complex, low-flow anesthesia procedures.

Key Features & Benefits Advanced Real-Time Display

Available with an 8.4-inch (Standard Model) or 10.4-inch (Advanced Model) high-definition color TFT screen. It allows clinicians to easily monitor Pressure-Time, Flow-Time, Pressure-Volume, and Flow-Volume waveforms, enabling instant cycle switching at the touch of a button.

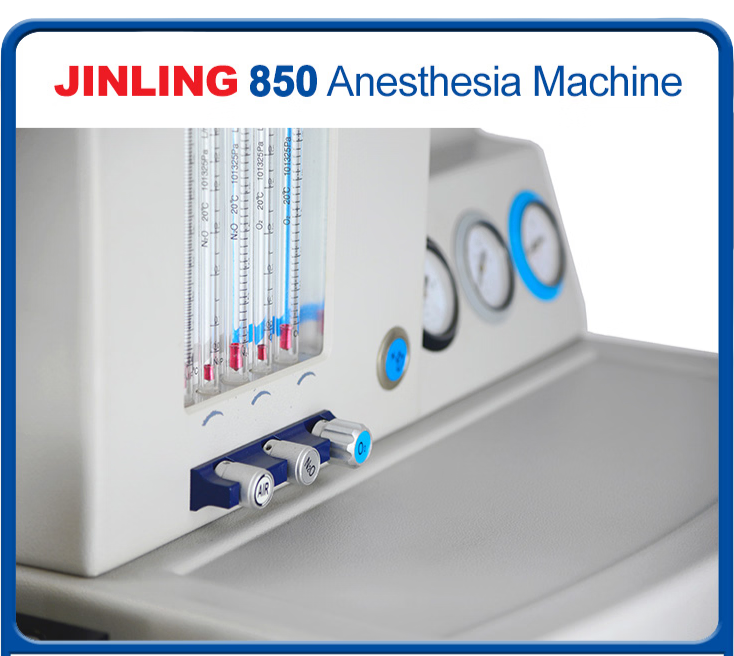

High-Precision Gas Delivery

Features a sophisticated five-tube flowmeter (O2, N2O, and Air) fitted with an interlocking oxygen-nitrous oxide supply system, guaranteeing oxygen output never drops below a safe 21%.

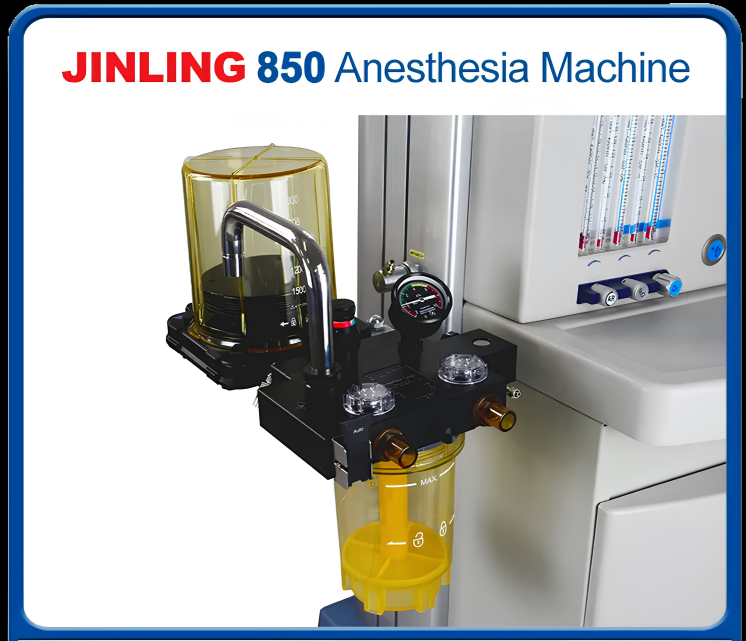

Superior Modular Circuit

Built with a standard integrated metallic modular respiratory circuit. This premium design eliminates gas sealing issues during high-temperature disinfection, ensuring highly effective cleaning and sterilization.

Innovative Na-Lime Tank

Equipped with an international rotating Sodium-lime canister made from imported PPSU material. It is resistant to temperatures up to 134°C and features an easy, one-handed operation system.

Low-Flow Anesthesia Ready

Integrates an advanced, highly stable Adjustable Pressure Limiting (APL) valve, optimized for minimizing anesthetic gas use during low and ultra-low flow procedures.

Intelligent Safety & Backup

Features an automated self-checking function during startup and self-calibrating sensors. Automatically switches to a built-in backup battery (minimum 4-hour capacity) during AC power outages. Includes comprehensive audible and visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, and gas/power failures.

Technical Specifications

Ventilation Capabilities

Feature	Specification
Ventilation Modes:	IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby (Advanced Model includes PCV)
Tidal Volume:	Adjustable from 20 to 1500 ml (Display range: 0 ~ 2000 ml)
Respiratory Rate:	1 ~ 100 bpm
Inspiratory/Expiratory (I:E) Ratio:	8:1 ~ 1:10 (Capable of inverse ratio ventilation)
PEEP Range:	0 ~ 20 cmH2O (Electronically controlled)
Inspiratory Pressure Trigger:	-10 ~ 10 cmH2O (Electronically controlled)
Sigh Function:	1 sigh breath in every 80 ~ 120 breaths
SIMV Rate:	1 ~ 20 bpm
Inspiratory Plateau:	0 ~ 1 second

Flowmeter & Vaporizer Specs:

Feature	Specification
Flowmeter Range:	O2 (0.1 ~ 10 L/min), N2O (0.1 ~ 10 L/min), Air (0.1 ~ 10 L/min)
Vaporizer Slots:	Double PA-I type slots (Accommodates Enflurane, Isoflurane, or Sevoflurane)
Vaporizer Concentration Range:	0 ~ 5% (Includes built-in self-compensating functionality)
Inhaled Oxygen Concentration Monitor:	21 ~ 100%
