LED Phototherapy BN300

SKU: LED-Phototherapy

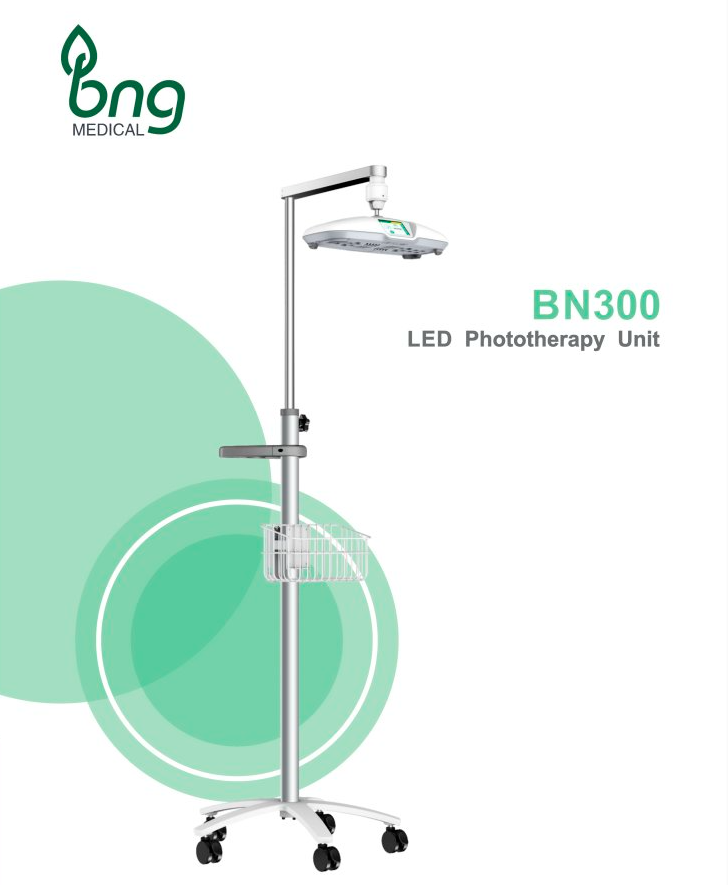

BN300 LED Phototherapy Unit The BN300 is an intensive neonatal phototherapy solution designed to provide highly effective treatment for newborn jaundice. Engineered for versatility, the unit features a height-adjustable trolley that allows it to be used seamlessly with infant incubators, radiant warmers, and baby cribs.

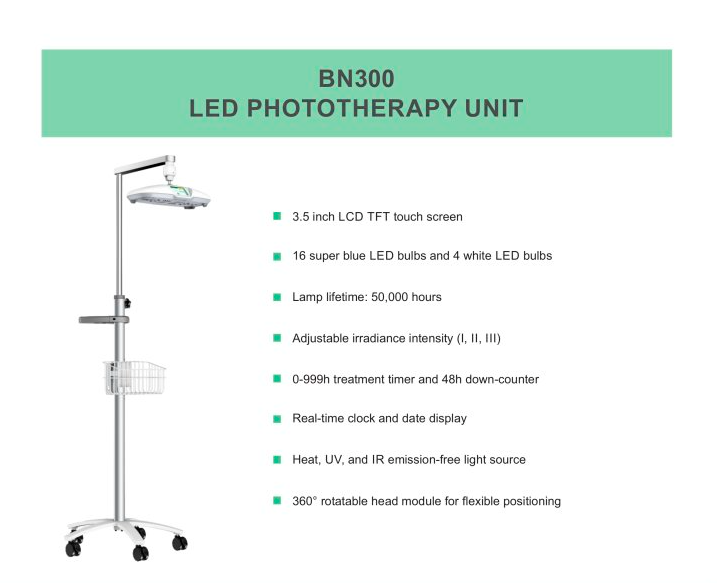

Key Features Advanced Light Source

Utilizes 16 super blue LED bulbs for high-intensity treatment and 4 white LED bulbs for patient examination.

Long Service Life

The light source is rated for 50,000 hours of operation.

Touch Interface

Equipped with a 3.5-inch LCD TFT touch screen for intuitive control.

Precise Monitoring

Displays a real-time clock and date, and includes a 0–999h treatment timer with a 48h down-counter.

Safety First

Provides a light source that is heat, UV, and IR emission-free to protect sensitive neonatal skin.

Optimal Positioning

Features a 360° rotatable head module and an adjustable trolley for flexible clinical application.

Clinical Convenience

Includes an ergonomic handle for easy mobility, a dedicated storage basket for accessories, and a tailored holder for the power adapter.

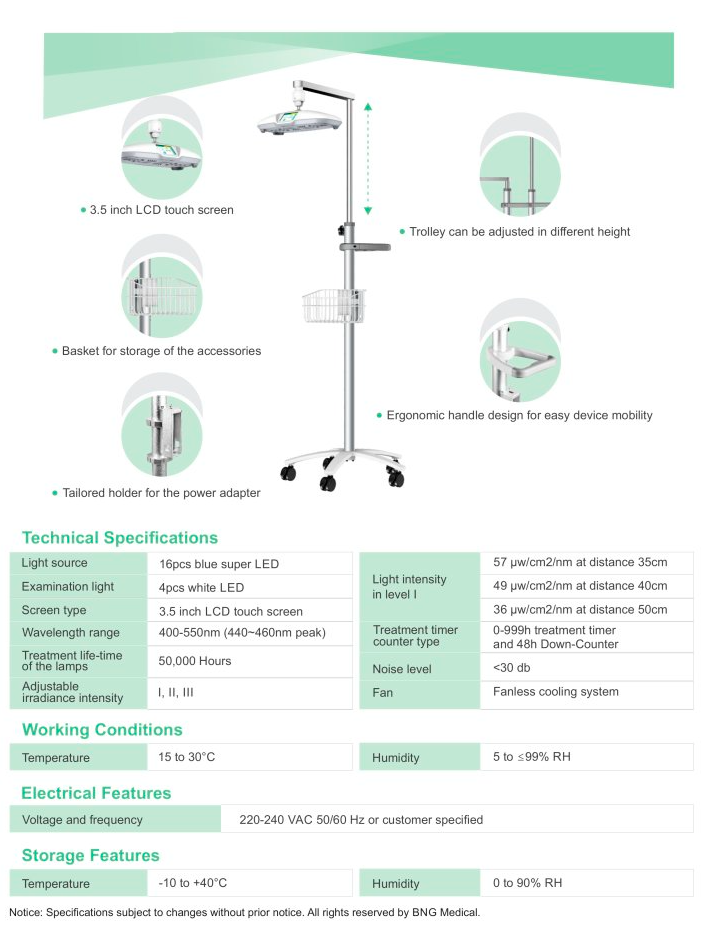

Technical Specifications

Feature	Specification
Light Source	16pcs blue super LED / 4pcs white LED
Wavelength Range	400–550nm (Peak: 440–460nm)
Light Intensity (Level I)$57\text{ μw/cm}^2/\text{nm}$ at 35cm / $36\text{ μw/cm}^2/\text{nm}$ at 50cm	(Level I)$57\text{ μw/cm}^2/\text{nm}$ at 35cm / $36\text{ μw/cm}^2/\text{nm}$ at 50cm
Irradiance Intensity	Adjustable levels: I, II, III
Cooling System	Fanless (Noise level $<30\text{ dB}$)
Screen Type	3.5-inch LCD touch screen
Voltage & Frequency	220\text{--}240\text{ VAC}$, $50/60\text{ Hz}$

Operational & Environmental Limits

Feature	Specification
Working Temperature:	$15\text{ to }30\text{°C}$.
Working Humidity:	$5\text{ to }\leq 99\%\text{ RH}$.
Storage Temperature:	$-10\text{ to }+40\text{°C}$.
Storage Humidity:	$0\text{ to }90\%\text{ RH}$.
