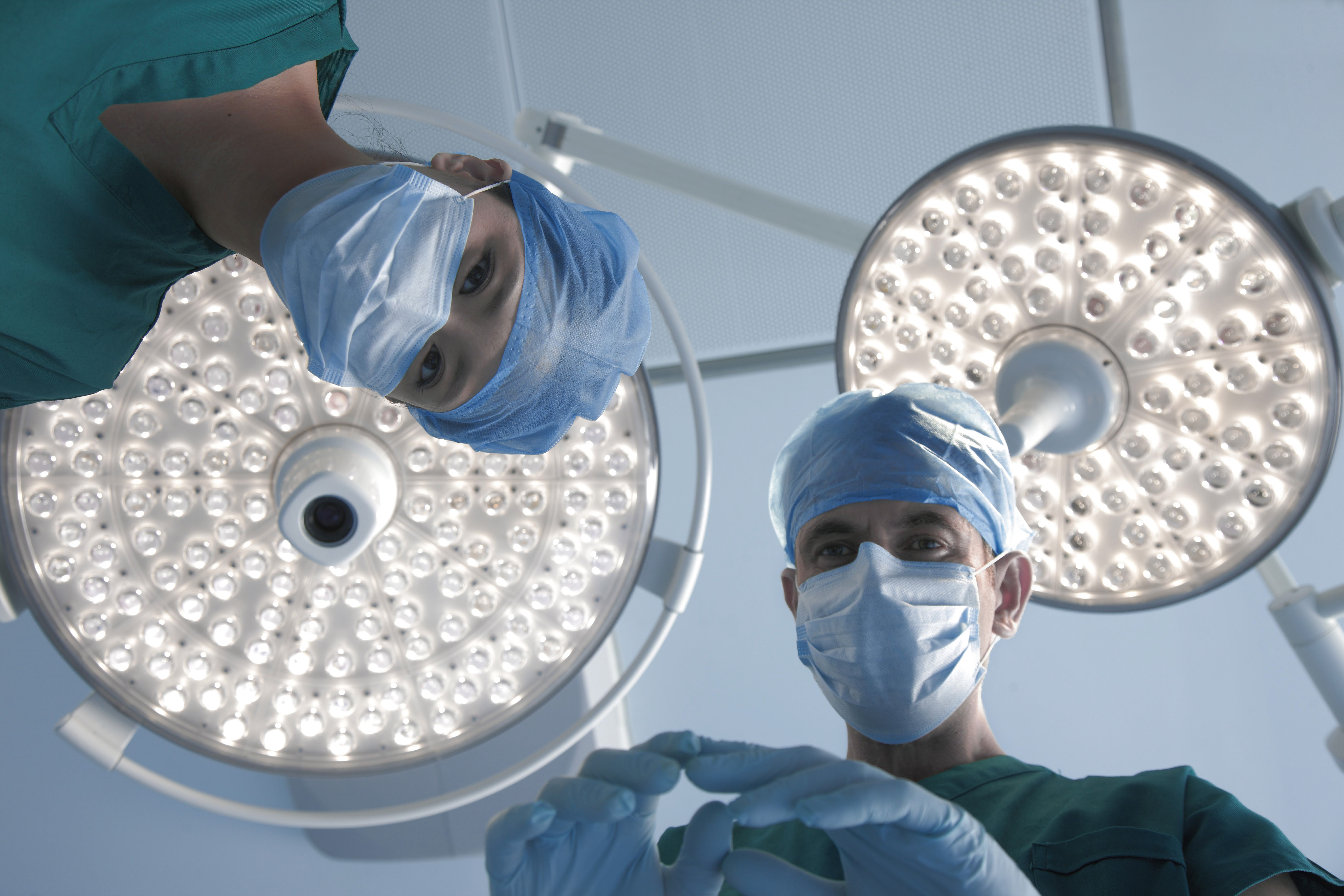

Heyer Purelit OL9500

Hygiene

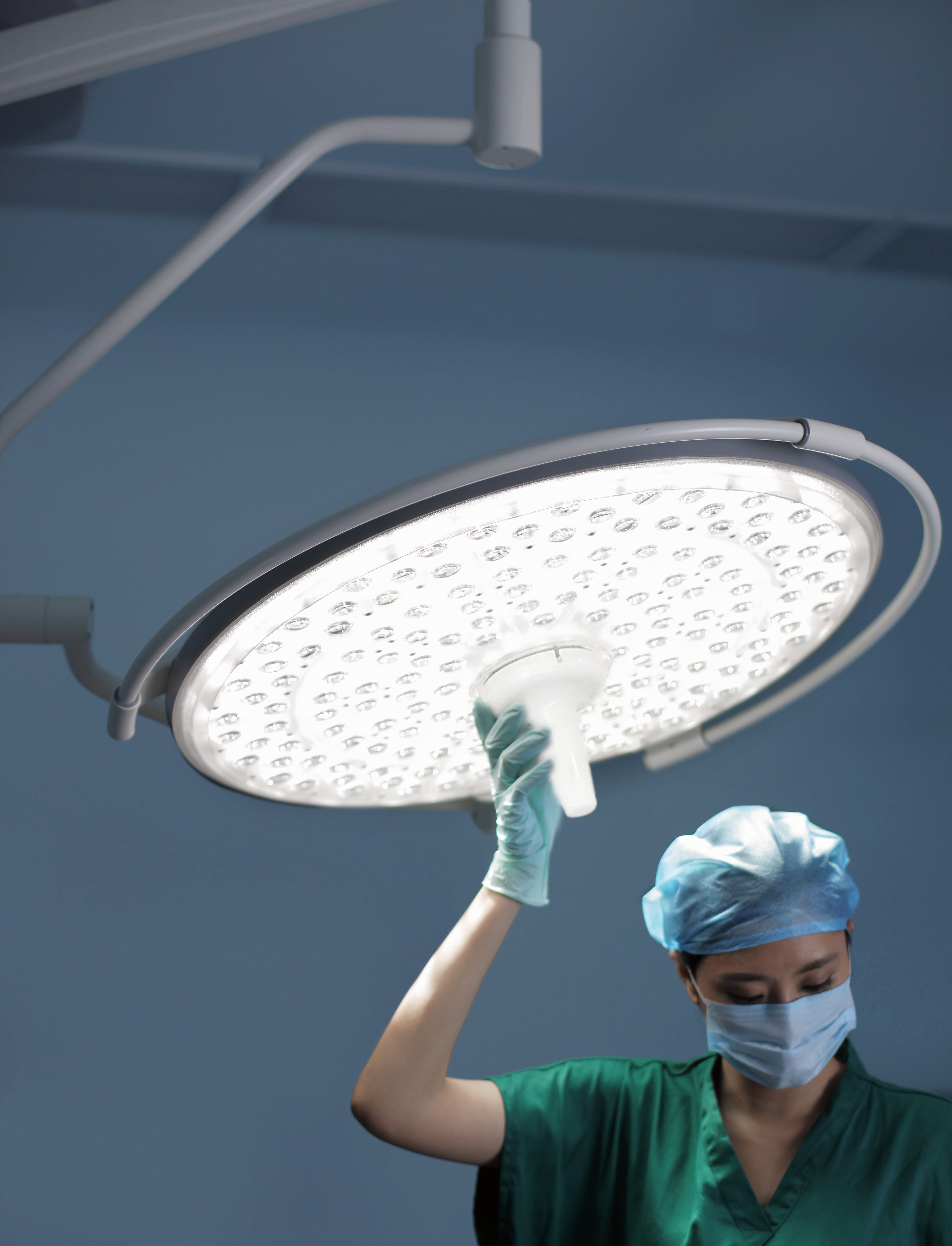

The light head features an ultra-thin, streamlined aluminum alloy shell that provides low wind resistance, allowing stable laminar airflow to reach the surgical wound and prevent cross-infection. The aluminum shell also offers outstanding heat dissipation to extend the life of the LEDs. It includes a detachable and sterilizable PSU Polysulfone handle that can withstand heating up to 135°C.

Lighting Quality & Precision

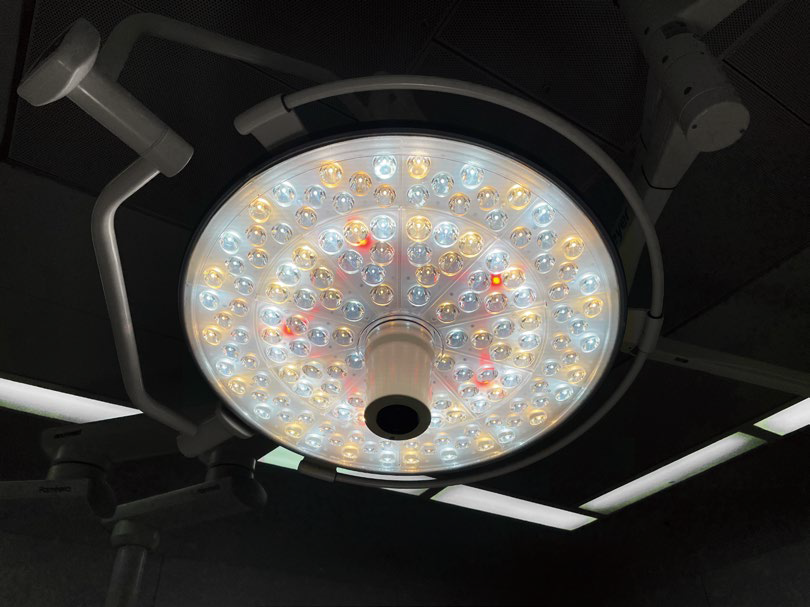

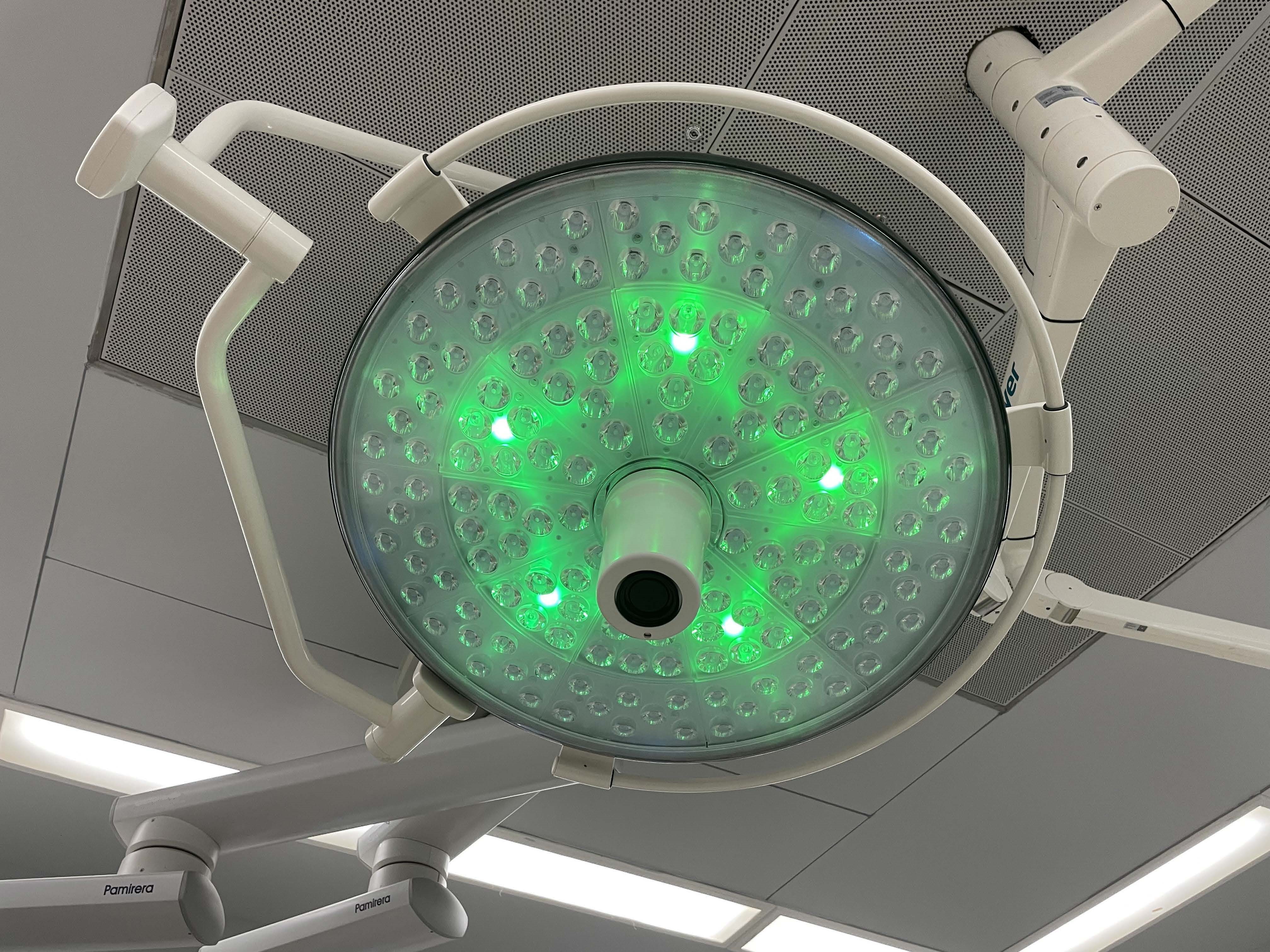

The system delivers an all-dimensional, shadowless lighting experience with a white LED light that eliminates colored cast shadows. A multi-lens structure with patented focus technology can deliver a light spot diameter of up to 250mm and an illumination depth of up to 1,400mm. It includes two independent LED bulbs specifically to provide basic illumination for endoscopic surgeries. The synthetic resin light screen features anti-infrared coating (to prevent tissue desiccation), 2H hardness scratch-proofing, and an anti-static coating (to prevent floating particle absorption).

Control & Safety

A microprocessor control panel allows surgeons to easily adjust lighting intensity in 10 levels, from 30% to 100%. The multi-lens matrix structure is designed to prevent a total blackout if a single light module fails, ensuring patient safety during operations. It uses a German-imported spring arm that maintains its position without drifting.

Efficiency & Adaptability

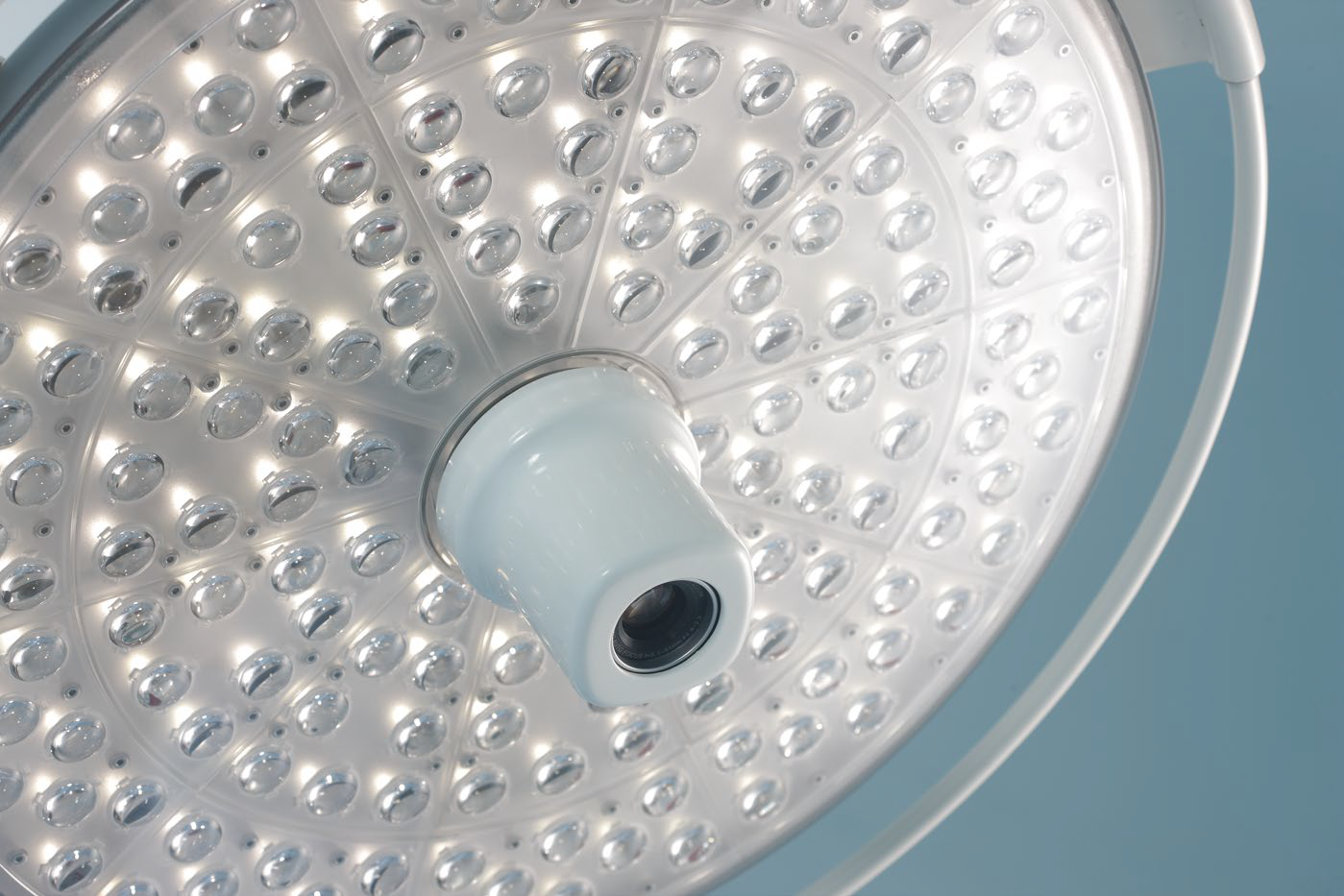

The LED bulbs have a long life expectancy of up to 70,000 hours, making them reliable and cost-effective with low power consumption. The system is HD camera compatible and supports low-height ceiling mounting.

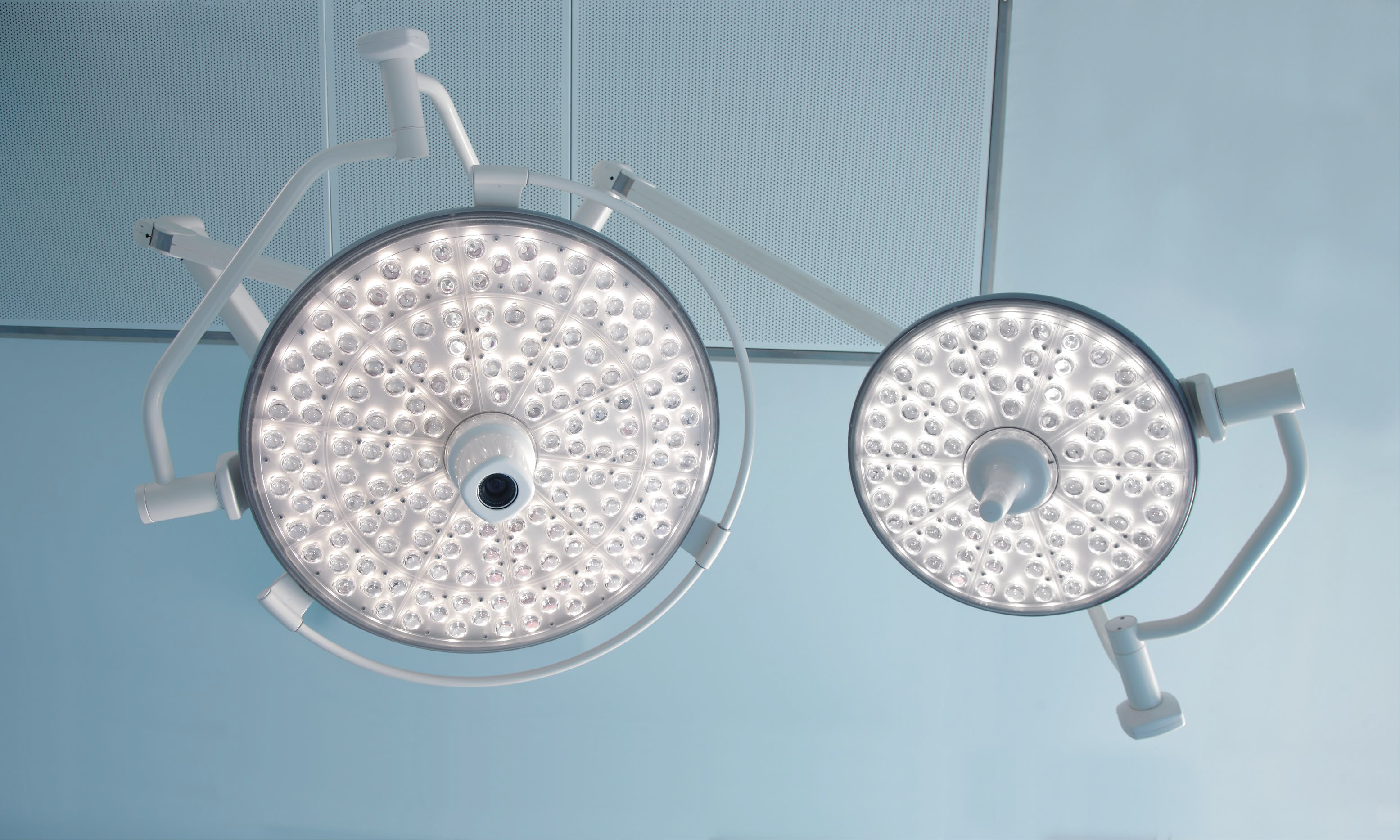

Technical Specifications The series includes two main models

the larger OLSS70 (featuring 20 matrix lens modules and 160 LEDs) and the smaller OL9550 (featuring 10 matrix lens modules and 80 LEDs).

Here is a comparison of their technical specifications

Specification OLSS70 OL9550 Diameter of lights 700 mm 500 mm Illumination 160,000 Lux 160,000 Lux Color temperature 4,300 K 4,300 K Color rendering Index (Ra) 95% 95% Diameter of light spot 250 mm 200 mm LED power 160 W 80 W Illumination depth (60%) 2600 mm 2400 mm LED service life 70,000 hours 70,000 hours Background light illumination 230 Lux 230 Lux Quantity of LED bulbs 160 80 Minimum installation height 2,800 mm 2,800 mm Illumination adjustment 30% to 100% 30% to 100% Temp rise (surgical area surface) 15±0.5 °C 15±0.5 °C Temp rise (surgeon's head) 1±0.5 °C 1±0.5 °C
