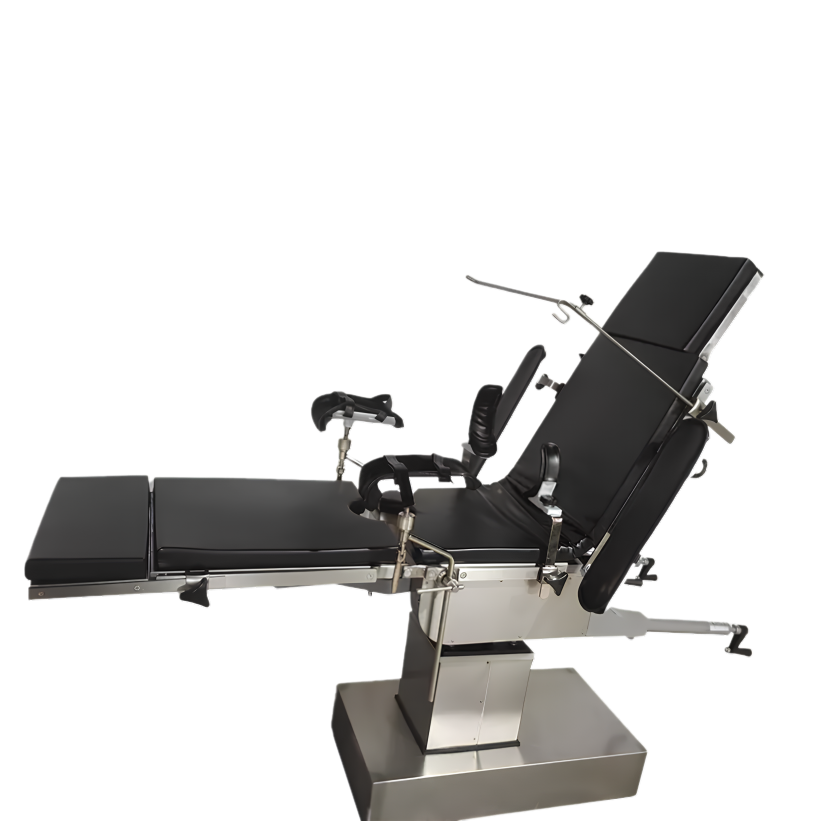

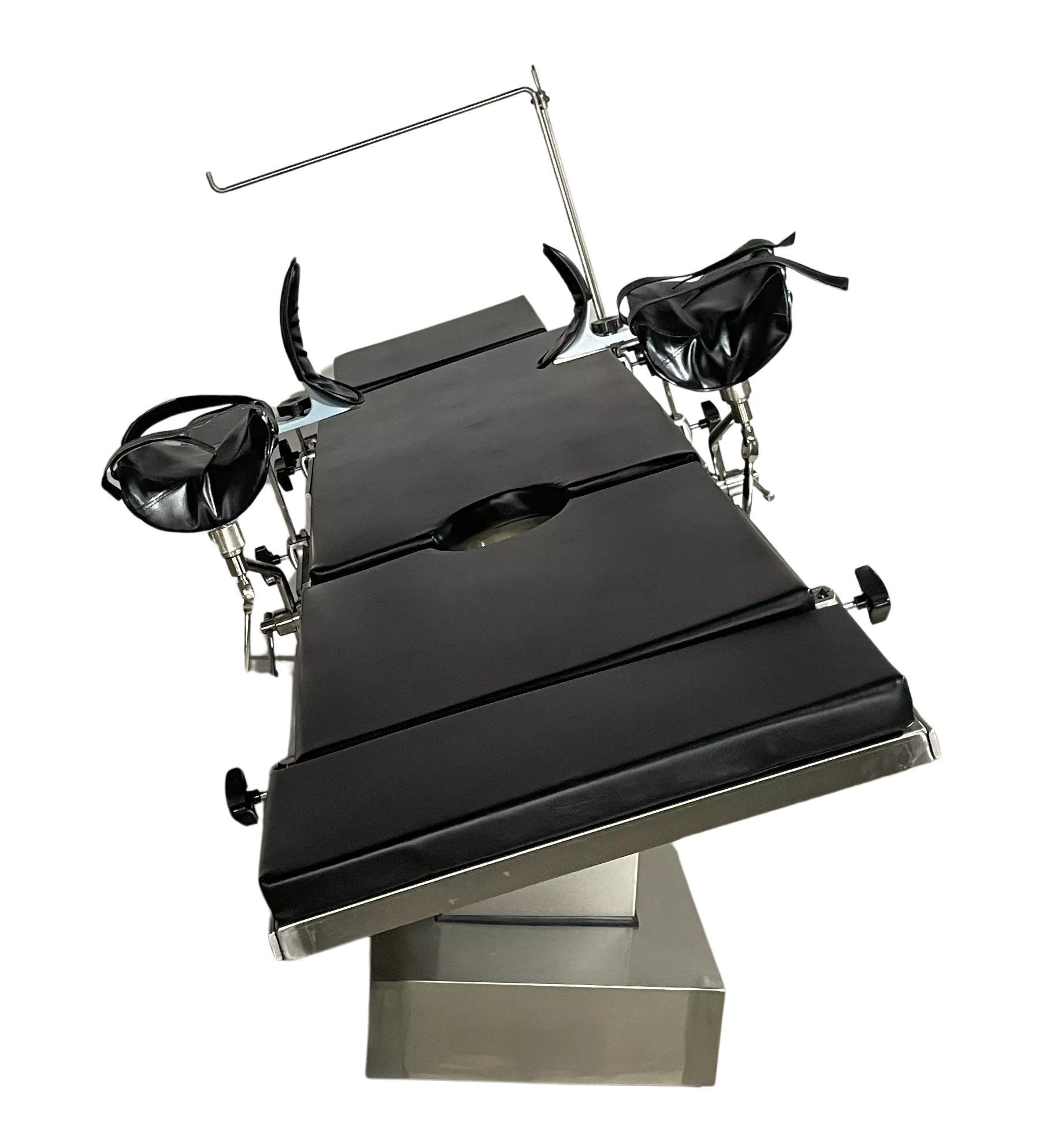

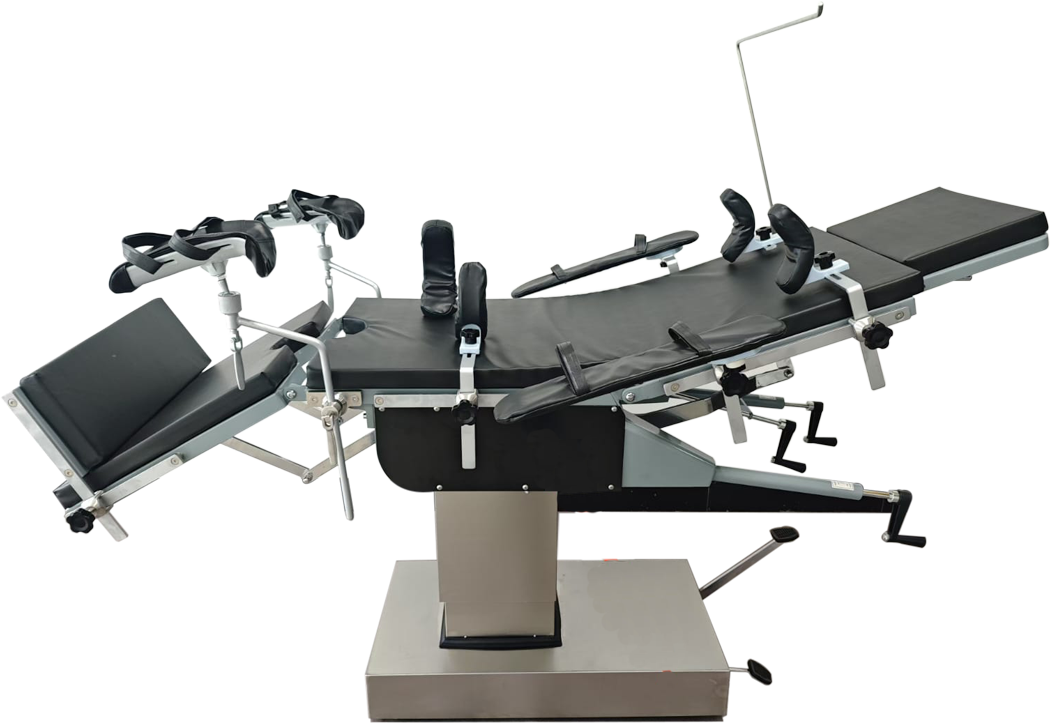

Suxin SXS3008 Head-Operated Comprehensive Operating Table

SKU: Suxin-SXS3008

Suxin SXS3008 Head-Operated Comprehensive Operating Table The Suxin SXS3008 Series (including the SXS3008-II and SXS3008-III models) by Jiangsu Suxin Medical Equipment is a highly versatile, head-controlled hydraulic operating table. Engineered for precision and stability, it is an ideal, multi-functional solution for a wide range of surgical disciplines, including general surgery (thorax, abdomen, perineum), neurosurgery, ophthalmology, ENT, gynecology, and orthopedics.

Key Features Head-Controlled Hydraulics

Features a reliable, smooth oil-pump hydraulic lifting mechanism. All multi-directional positional adjustments (tilt, back, and leg plates) are safely and efficiently controlled from the head side of the table by the anesthesiologist or surgical staff.

Exceptional Stability

The central hydraulic column is purposefully designed to prevent overturning, safely supporting a maximum dynamic load capacity of over 250 kg. Select models feature a T-base design for enhanced floor stability during rigorous procedures.

Premium Construction

Built for the demanding operating room environment, the base seat and column are available in high-quality stainless steel (providing superior rust resistance and hygiene) or durable carbon steel with powder coating.

Flexible Patient Positioning

Equipped with a split-type leg plate to accommodate complex lower limb positioning and an integrated kidney bridge elevator for optimized access during abdominal and kidney surgeries.

C-Arm & X-Ray Ready

The advanced SXS3008-III model features a double tabletop design with a radiolucent upper surface, ensuring clear, unobstructed intraoperative X-ray and imaging capabilities.

Technical Specifications

Feature	Specification
Overall Dimensions (L x W)	2100 mm x 500 mm (±20 mm)
Working Table Height	750 mm (±50 mm)
Height Adjustment Range	Up to 250 mm
Lateral Tilt (Left / Right)	≥ 20°
Trendelenburg / Reverse	≥ 20° to 25°
Back Plate Adjustment	+70° to -15° (Up to +80° upward)
Head Plate Adjustment	±30° to 90°
Leg Plate (Downwards)	≥ 90°
Kidney Bridge Lift	≥ 100 mm to 120 mm
Maximum Load Capacity	> 250 kg
